LED board for Open Colorimeter
LED board for Open Colorimeter
Regular price
£7.00
Regular price
Sale price
£7.00
Unit price
/
per
Do you want to use the Open Colorimeter with a specific wavelength LED instead of the white LED board that it ships with?

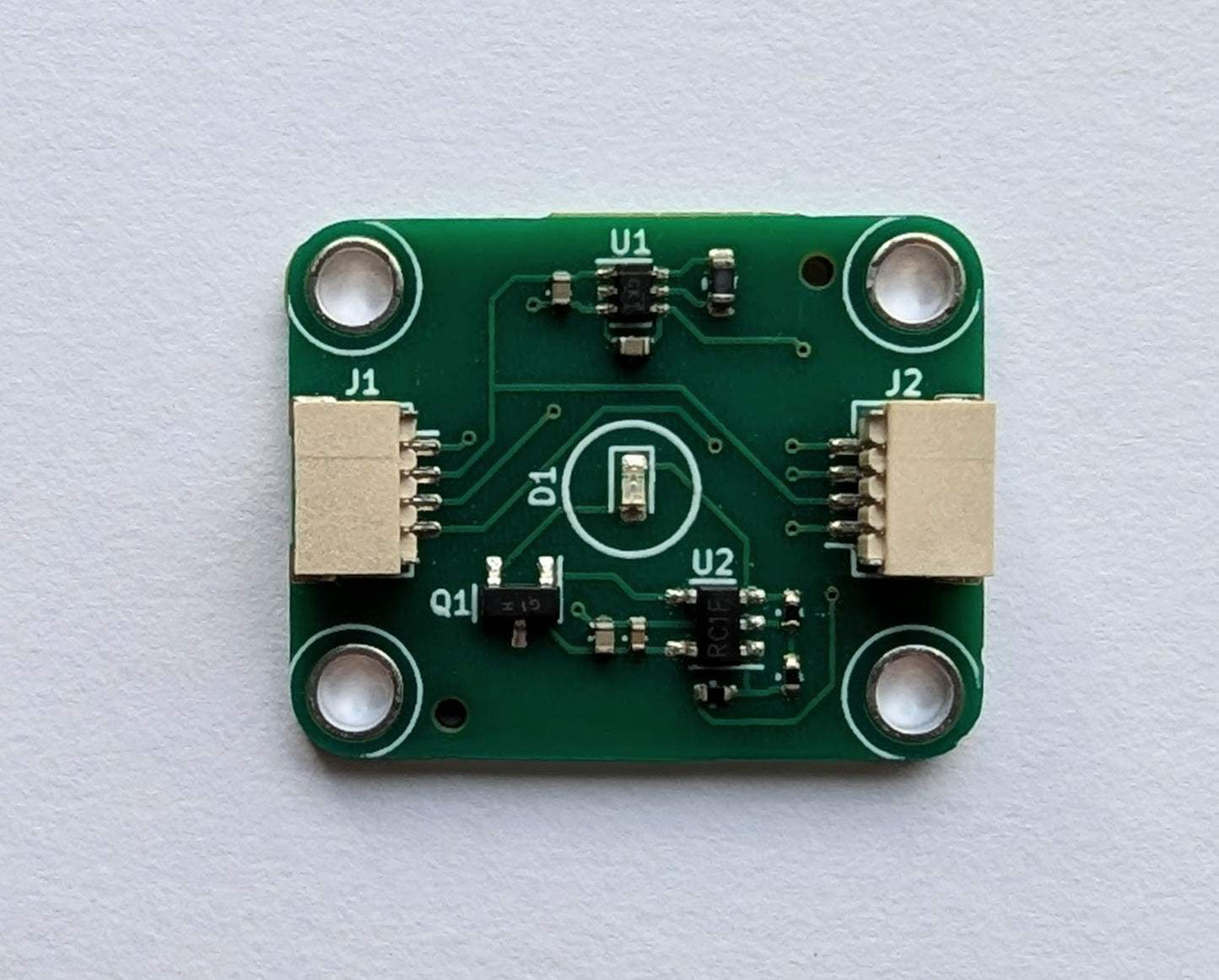

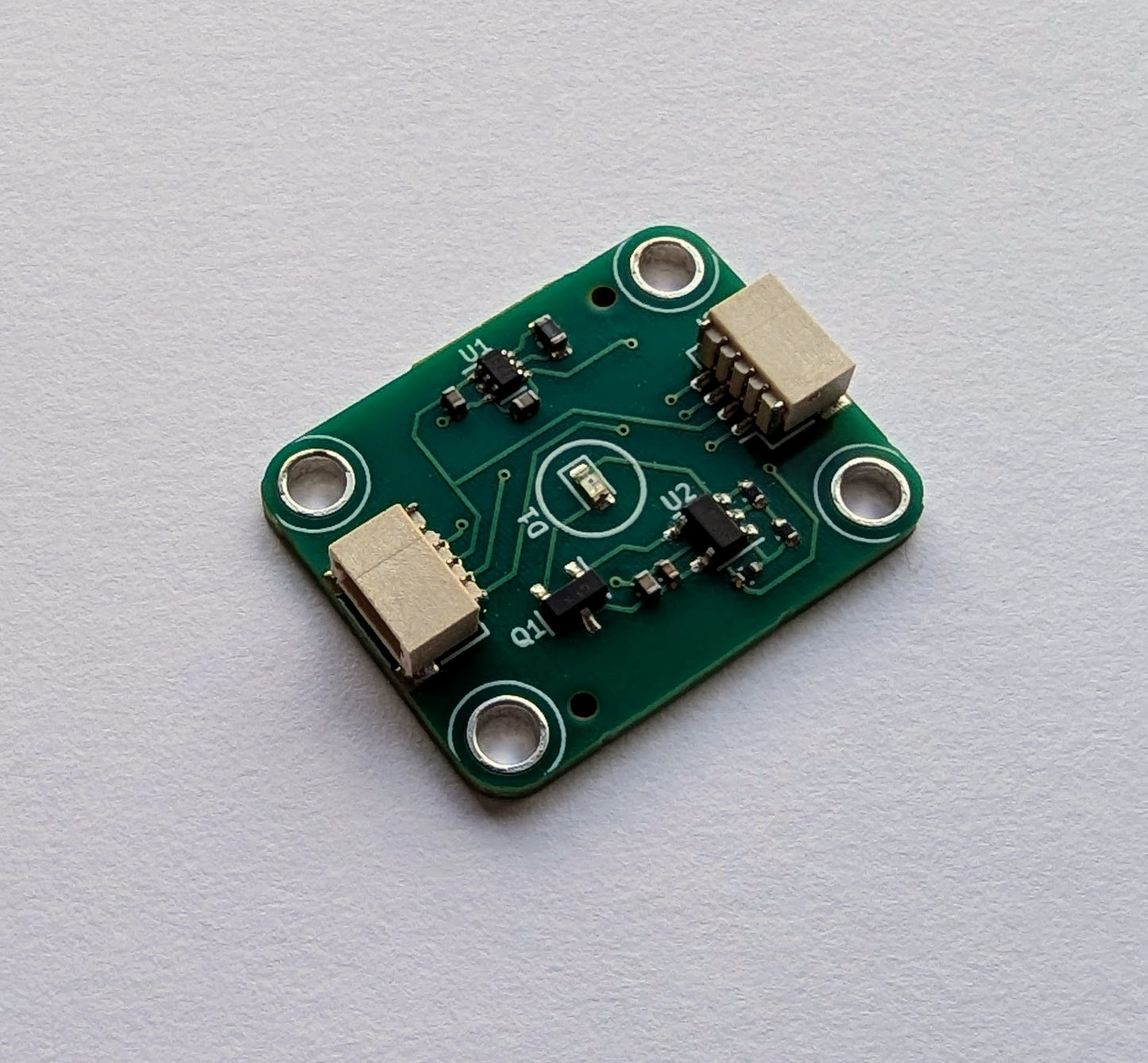

We have LED boards from IO Rodeo with current control (CC) for use with the Open Colorimeter. The board has two STEMMA QT / Qwiic connectors to connect the LED board using a 4-pin JST-SH cable (included with your Open Colorimeter).
Features
- On-board voltage regulator
- 16mA constant current LED driver
- Dimensions: 25.4mm x 20mm x 1.6mm
- Four M2.5 mounting holes
We currently have LED boards with the following wavelengths:

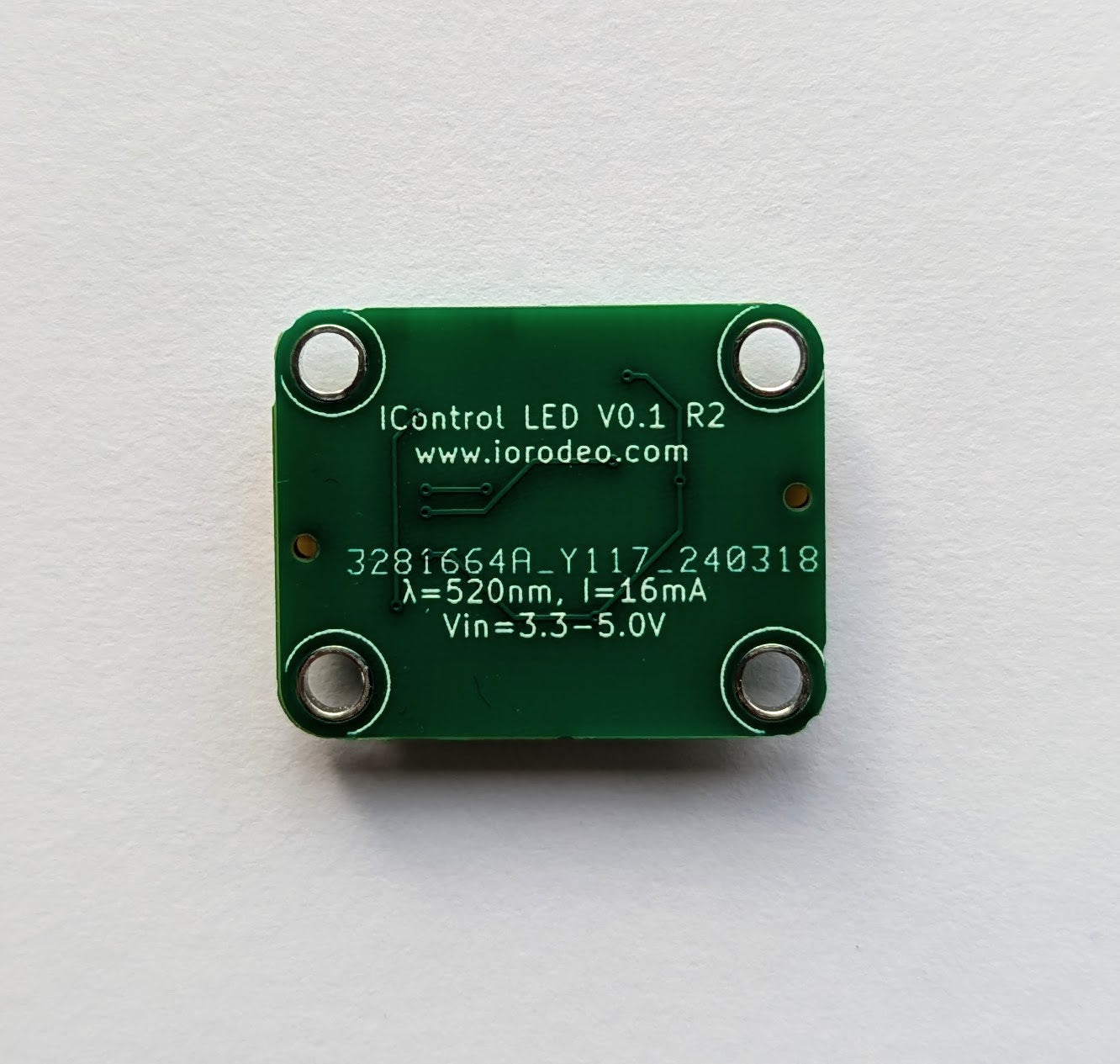

- 520 nm (MPN SZYY0603G)

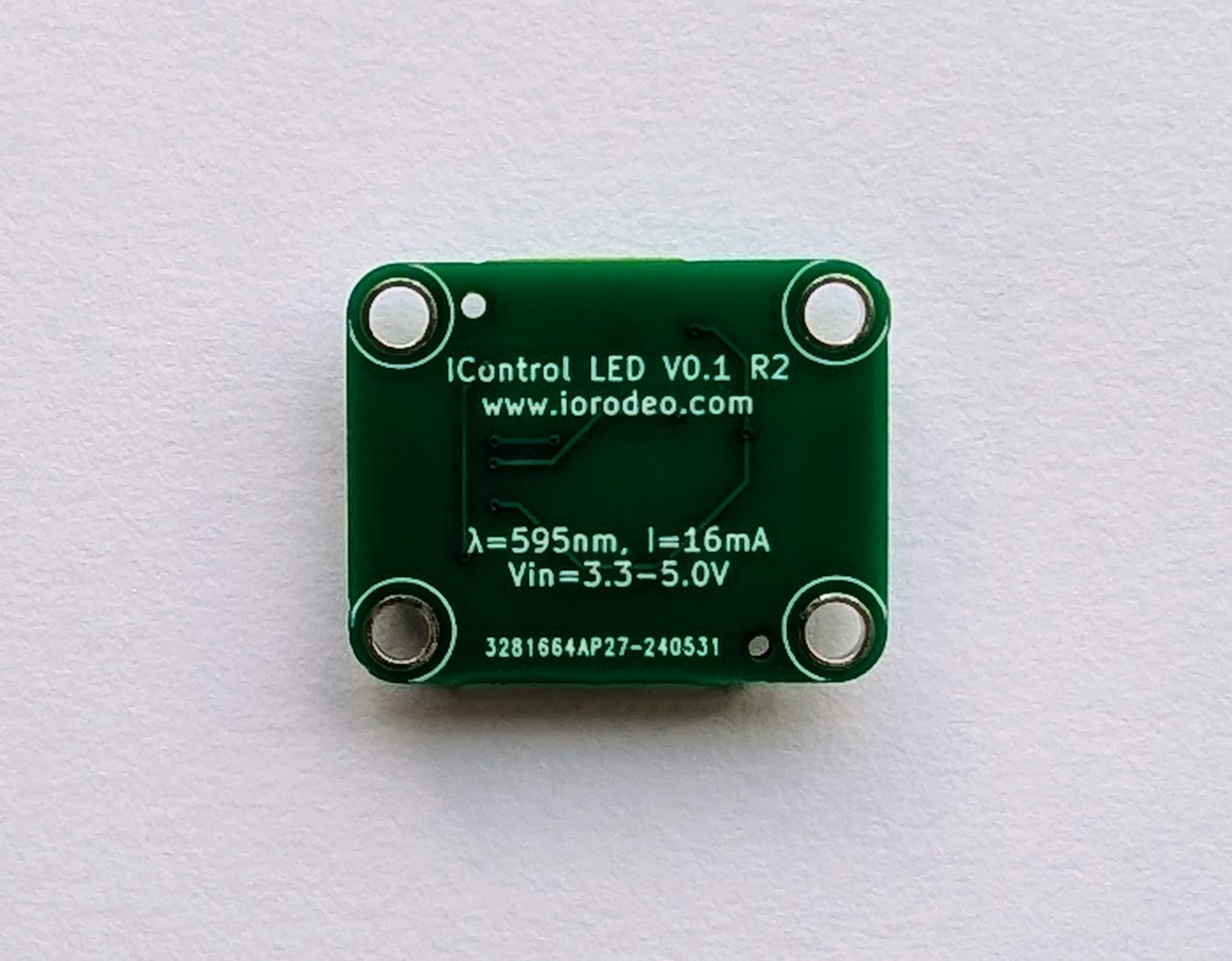

- 595 nm (MPN TZ-P2-0603YTCS1-0.6T)

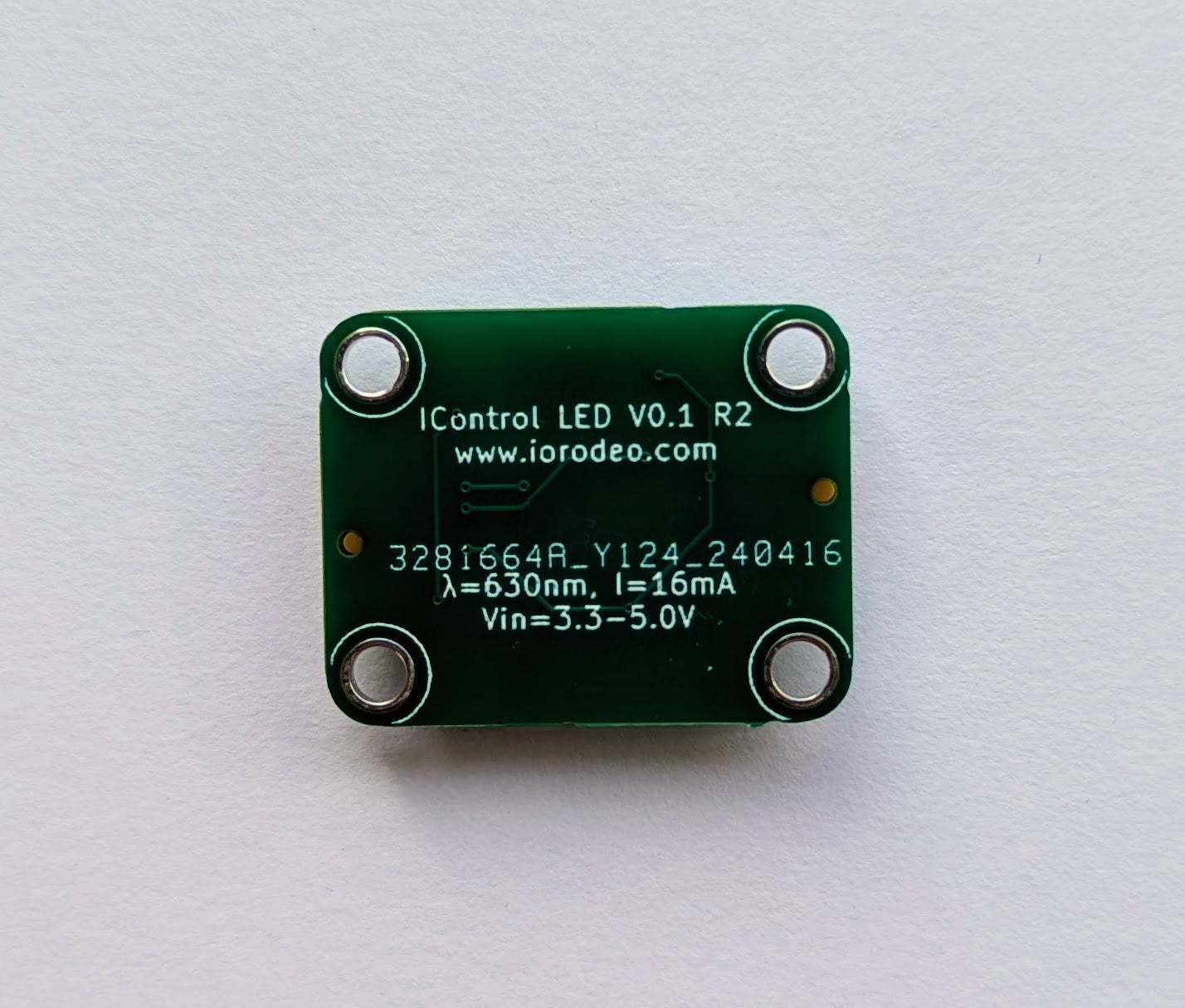

- 630 nm (MPN E6C0603URAC1UDA)
If you're interested in different wavelengths, please get in touch!
