Open Colorimeter Bundle with LED boards

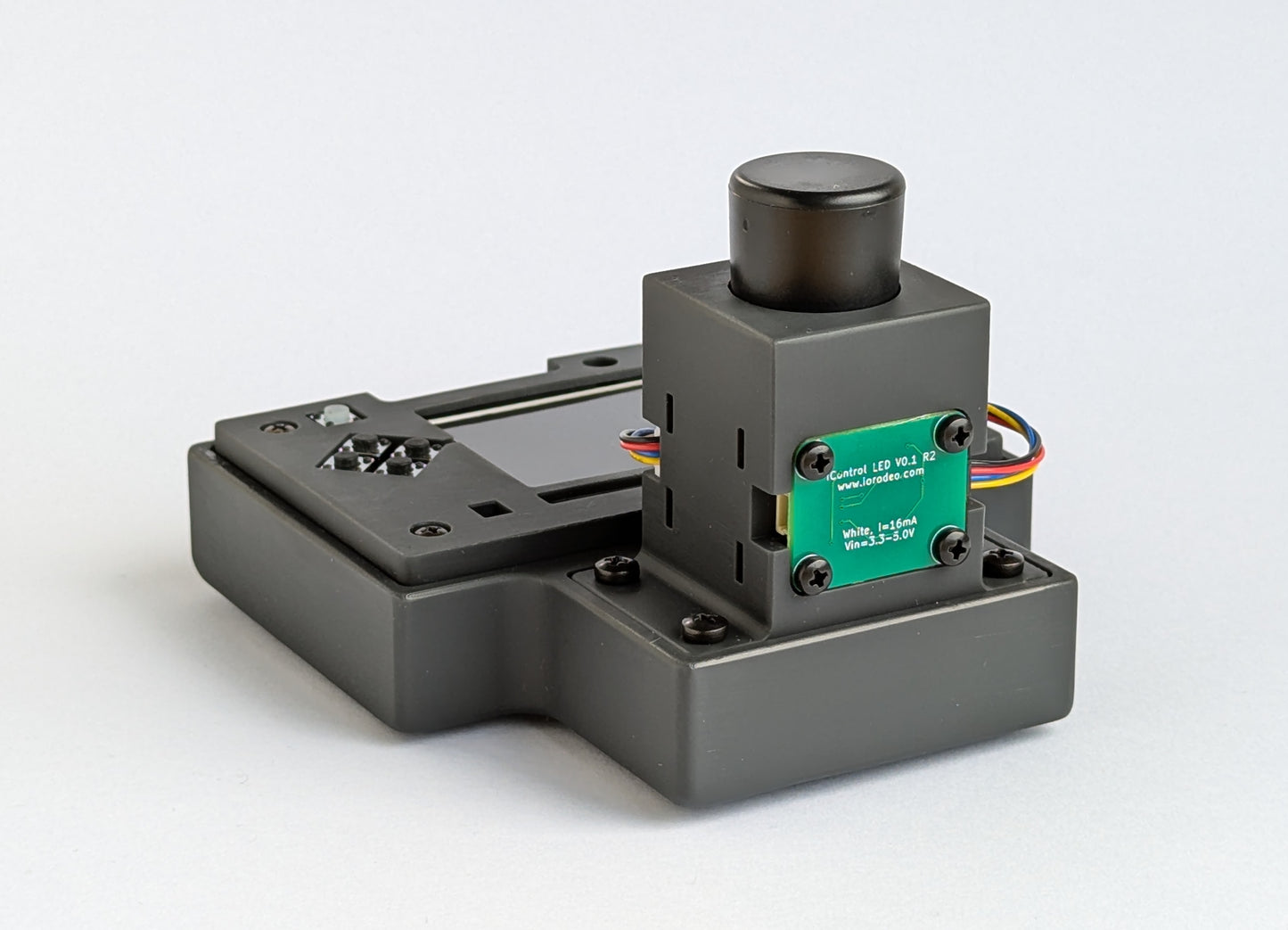

The Open Colorimeter, designed by IO Rodeo, is a single-wavelength photometer for measuring visible/IR light absorbance through samples in a standard 10mm pathlength cuvette.

The device uses the  Adafruit TSL2591 Light Sensor and a PyBadge pre-programmed with open source CircuitPython firmware. The cuvette holder and enclosure are made from 3D-printed black plastic. Links to the hardware designs and open source firmware are in the IO Rodeo Product Guide.

The Open Colorimeter ships pre-programmed & ready-to-use. No assembly, soldering or programming is required.

Product Features:

• Single wavelength photometer with a broad range light sensor
• Ships with a white light LED board
• Includes a pack of 6 cuvettes: 3 macro (2.5-4.5 mL) and 3 semi-micro (1.5-3.0 mL)
• Includes a light-blocking cap to place over the cuvette during measurements

This bundle deal includes LED boards with the following wavelengths (1 each):

• 520 nm (MPN SZYY0603G)

• 630 nm (MPN E6C0603URAC1UDA)

These boards from IO Rodeo have two STEMMA QT / Qwiic connectors to connect the LED board using a 4-pin JST-SH cable (included with your Open Colorimeter).

Features

• On-board voltage regulator
• 16mA constant current LED driver
• Dimensions: 25.4mm x 20mm x 1.6mm
• Four M2.5 mounting holes
