The Mayfly Data Logger is a powerful, user-programmable microprocessor board that can be easily programmed with several popular IDE software programs like the Arduino IDE. It features the ATmega1284p processor, which is much more powerful than the 328p chip found on most other boards. It has 4 times more flash memory for sketches, 8 times more RAM, and almost twice as many input pins as standard boards.
The Mayfly board can be powered by a 3.7v lithium polymer (lipo) battery (not supplied) or through the USB port. Programming can be done through the USB-C port or via the FTDI header.
You will need a CR1220 button cell lithium battery (not supplied) in order for the RTC to retain the time after the power has been removed. More information and tutorials about the board and kit can be found on the EnviroDIY website.

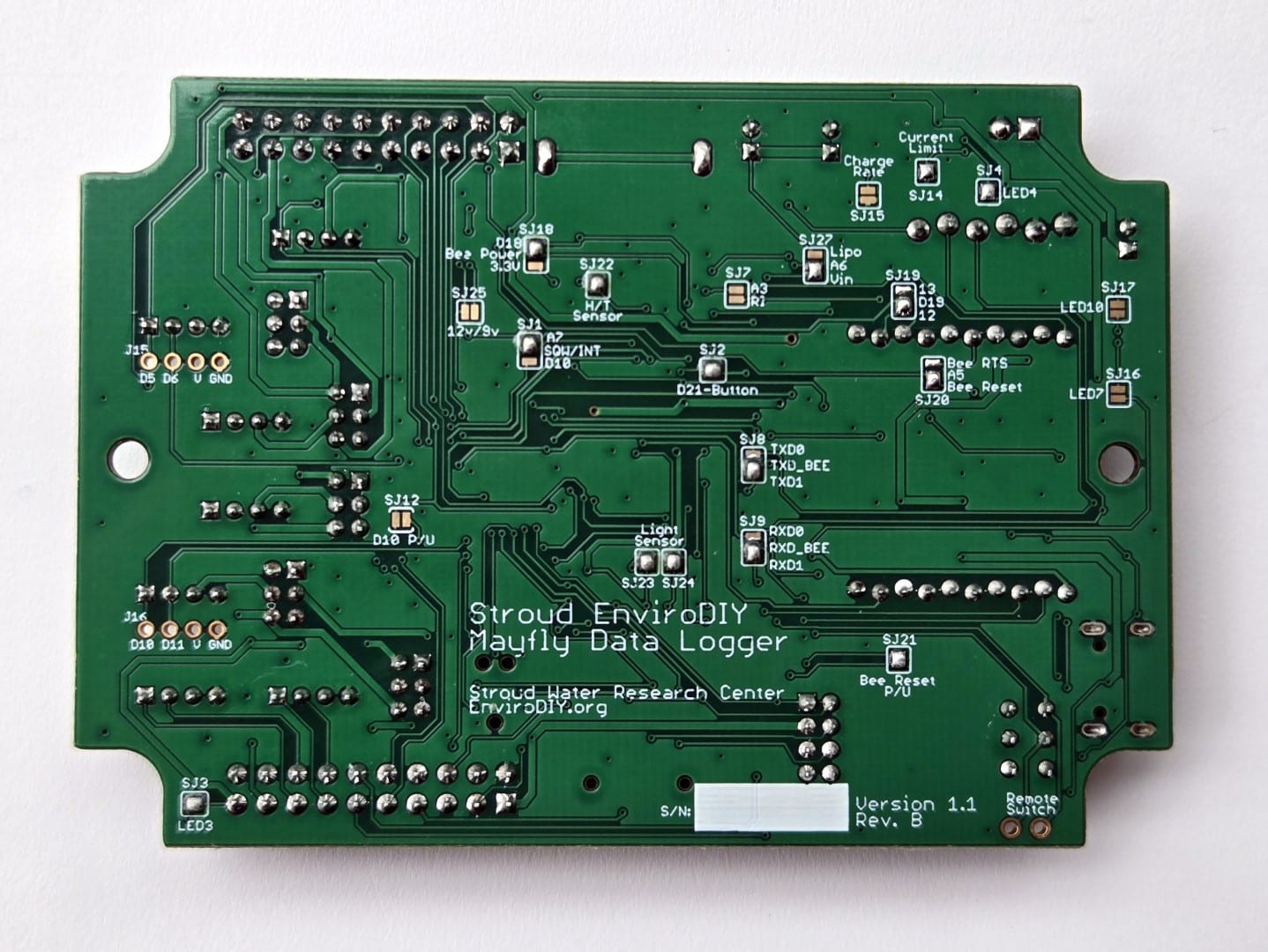

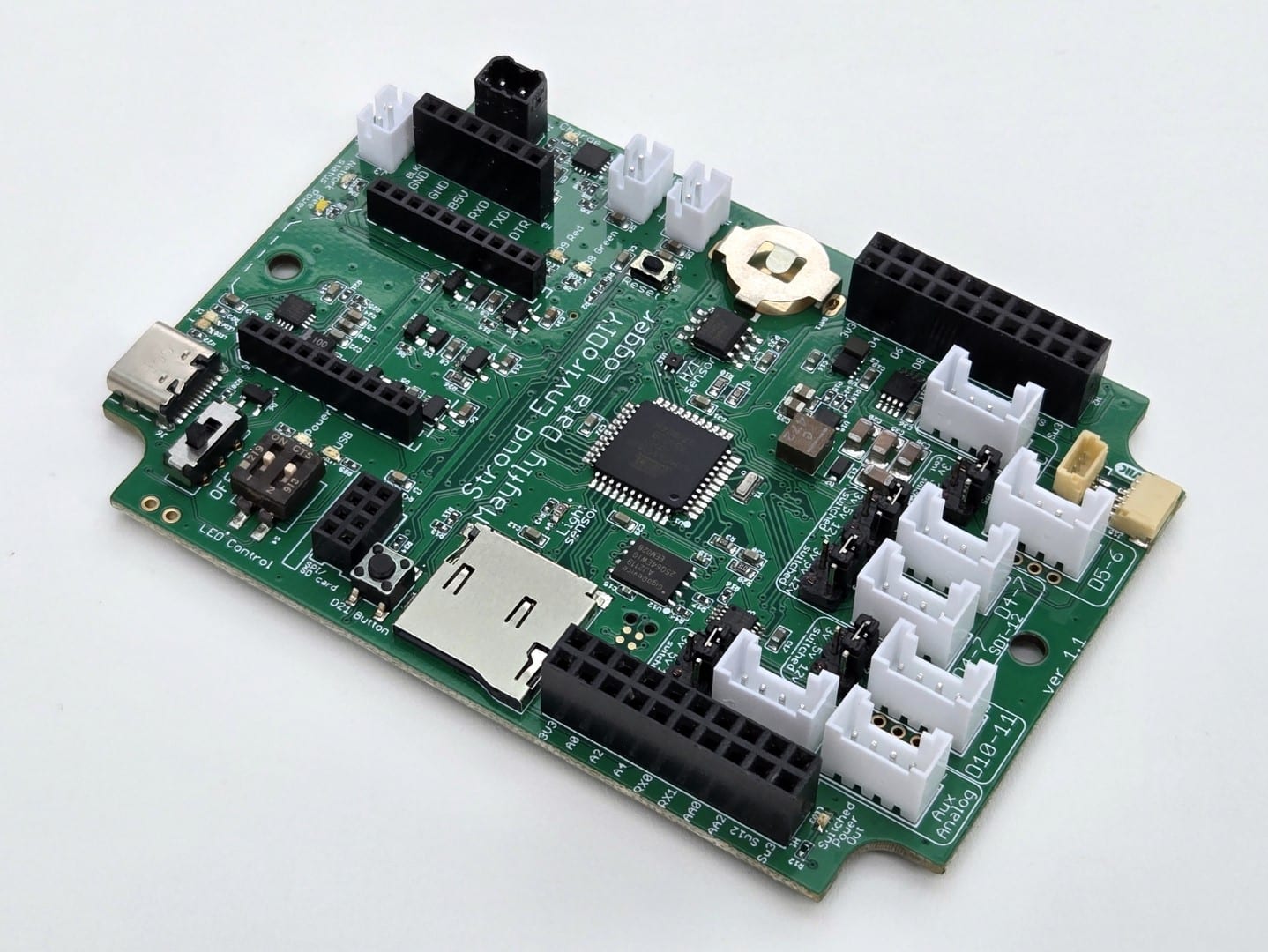

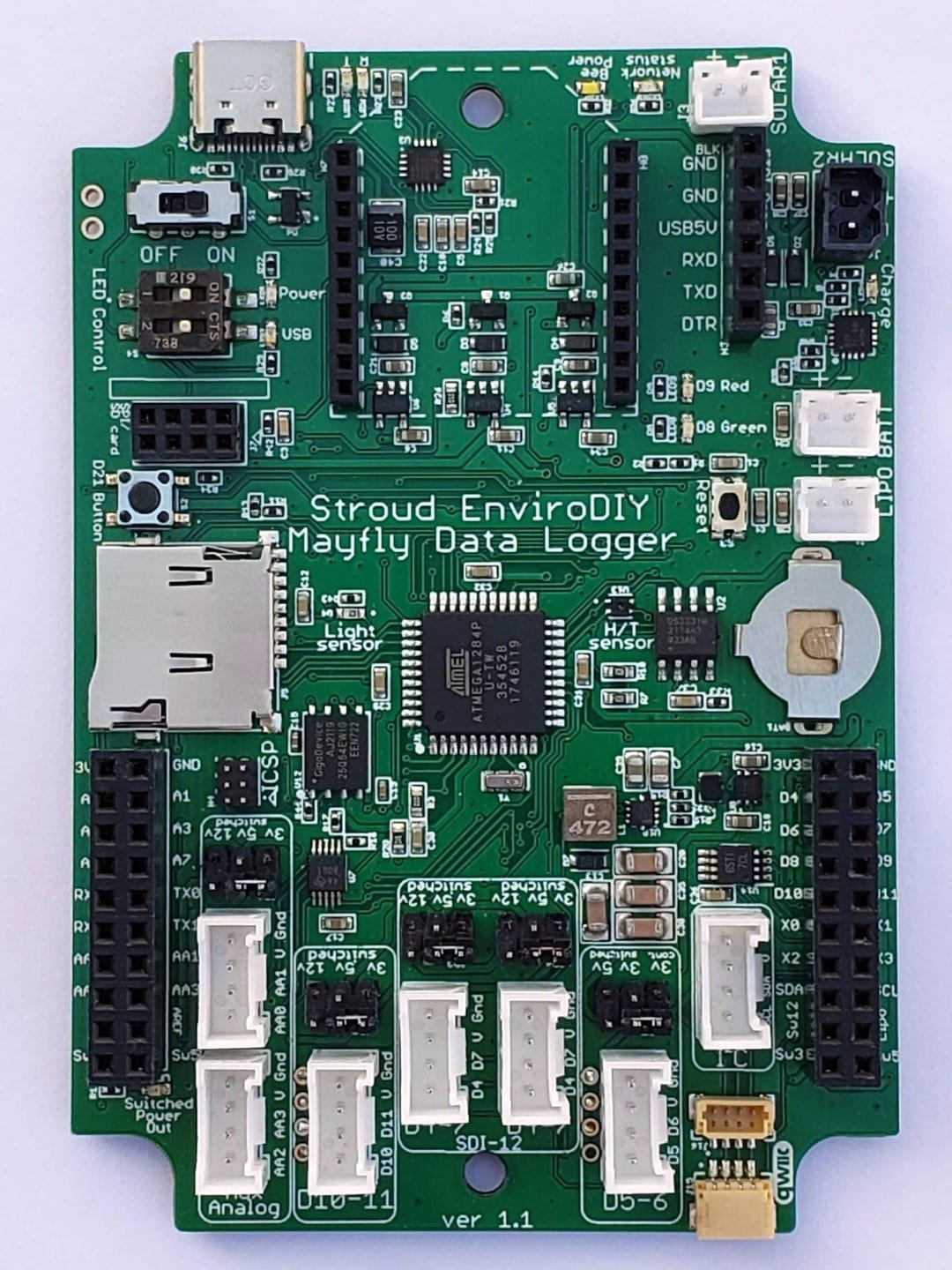

This is a single Mayfly Data Logger, version 1.1 revB.

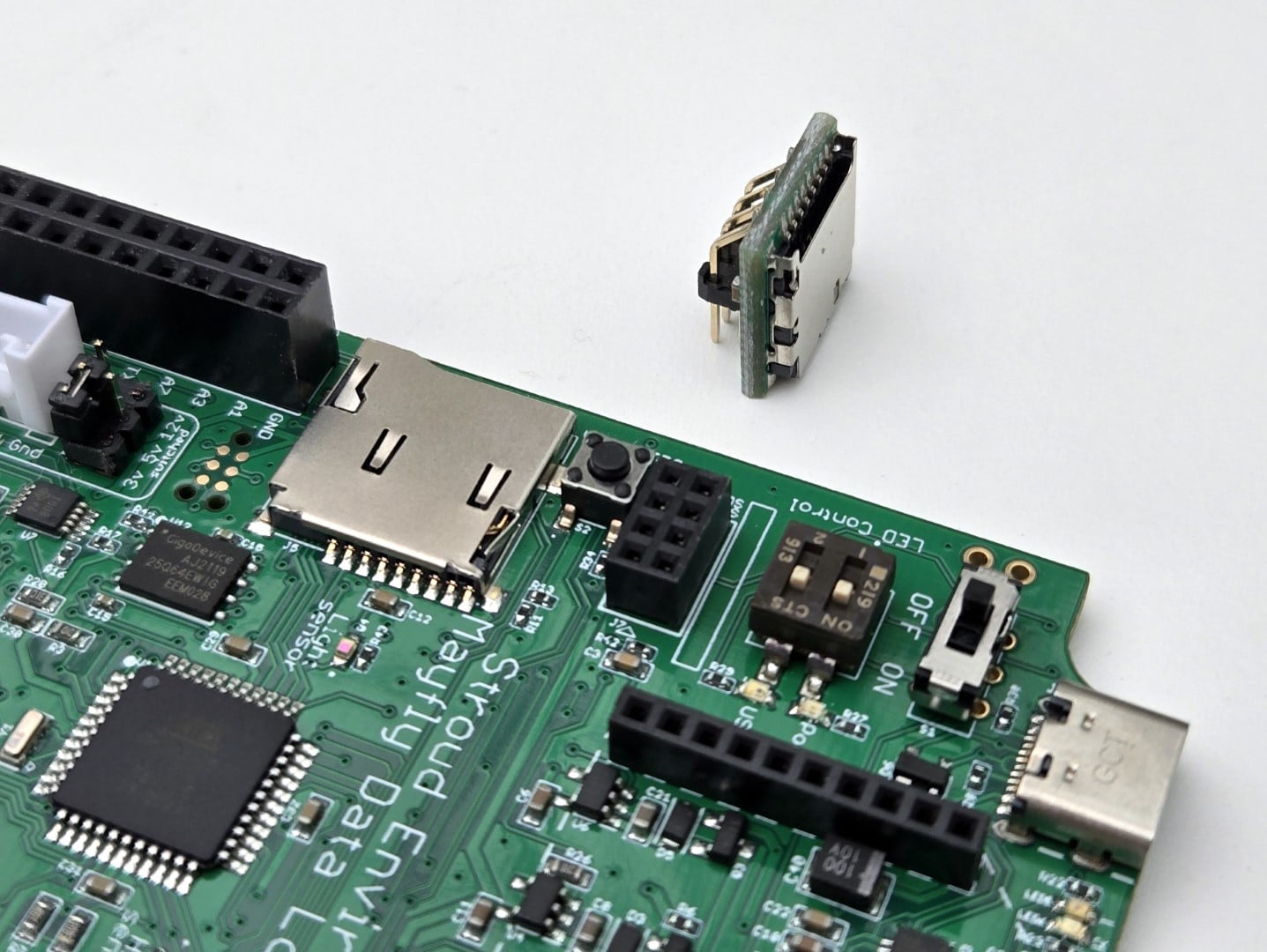

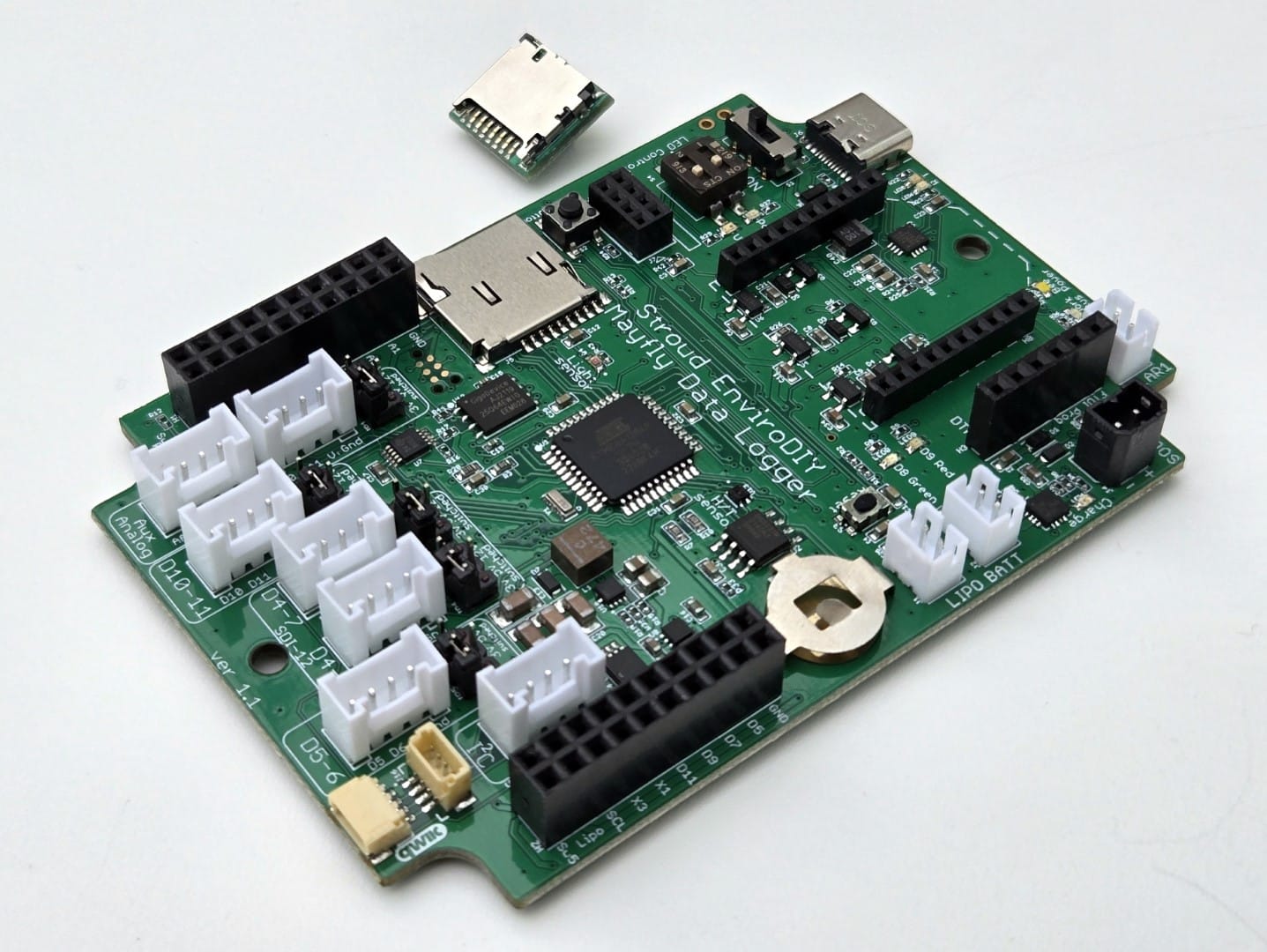

Note:This item also includes the removable EnviroDIY Mayfly Vertical microSD card adapter.
