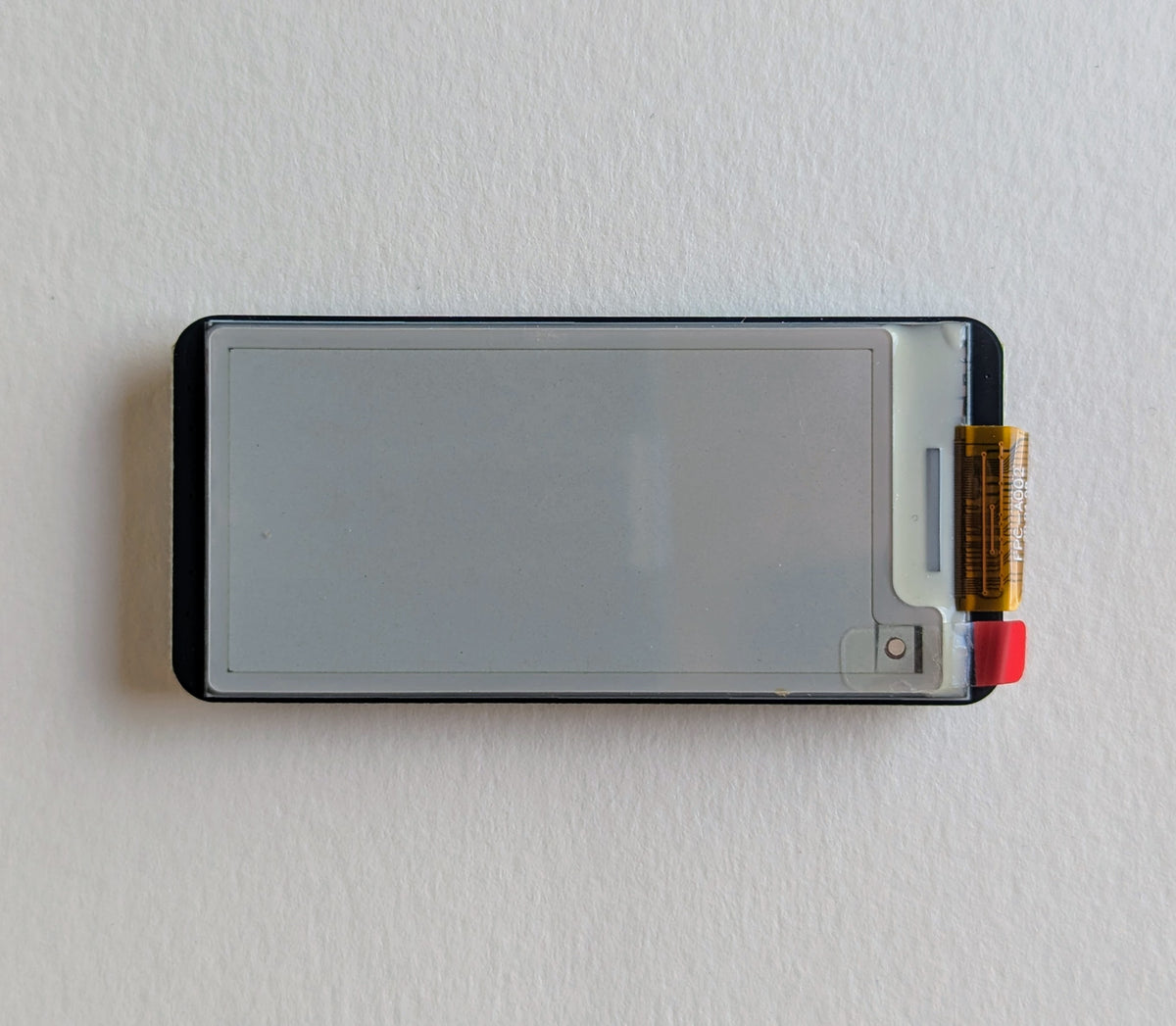

2.13" ePaper HAT+ for Raspberry Pi (250x122)

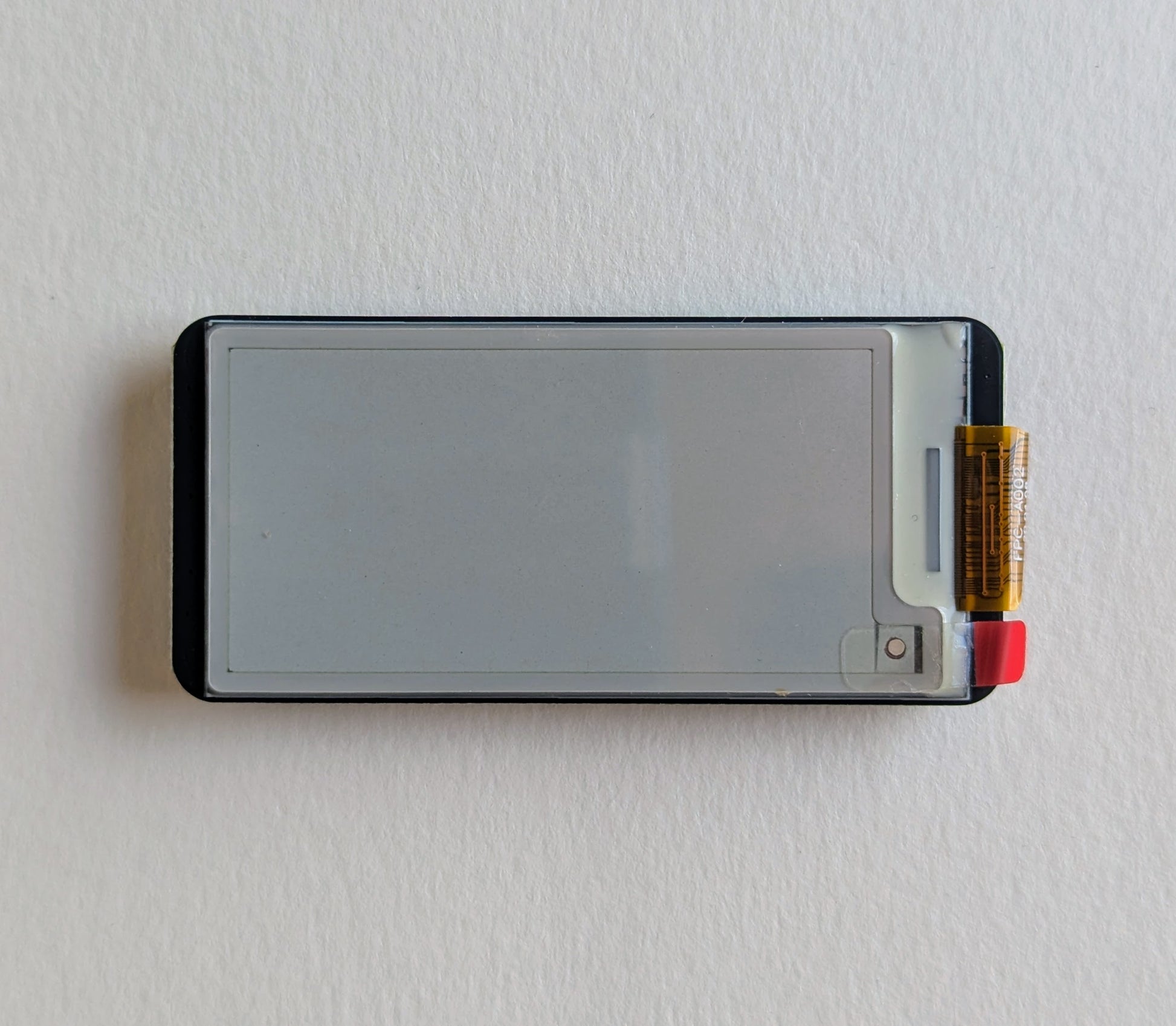

The Waveshare 2.13" E-Paper HAT+ is a compact, low-power display for Raspberry Pi that can be used with the Mothbox Pro insect monitor.

It offers a 250x122 resolution with support for partial refresh. With no backlight and a paper-like display effect, it maintains the last image even when powered down - ideal for ultra-low power applications.

Refresh times are fast - full refresh takes around 2 seconds, while partial refresh completes in just 0.3s. The module supports SPI communication (3-wire/4-wire) and works on 3.3V logic.

Features

• 2.13" e-Paper display, 250x122 resolution
• Supports partial refresh (0.3s) and full refresh (2s)
• No backlight, maintains the last image when powered off
• Paper-like display effect with wide viewing angle
• 3.3V operating voltage

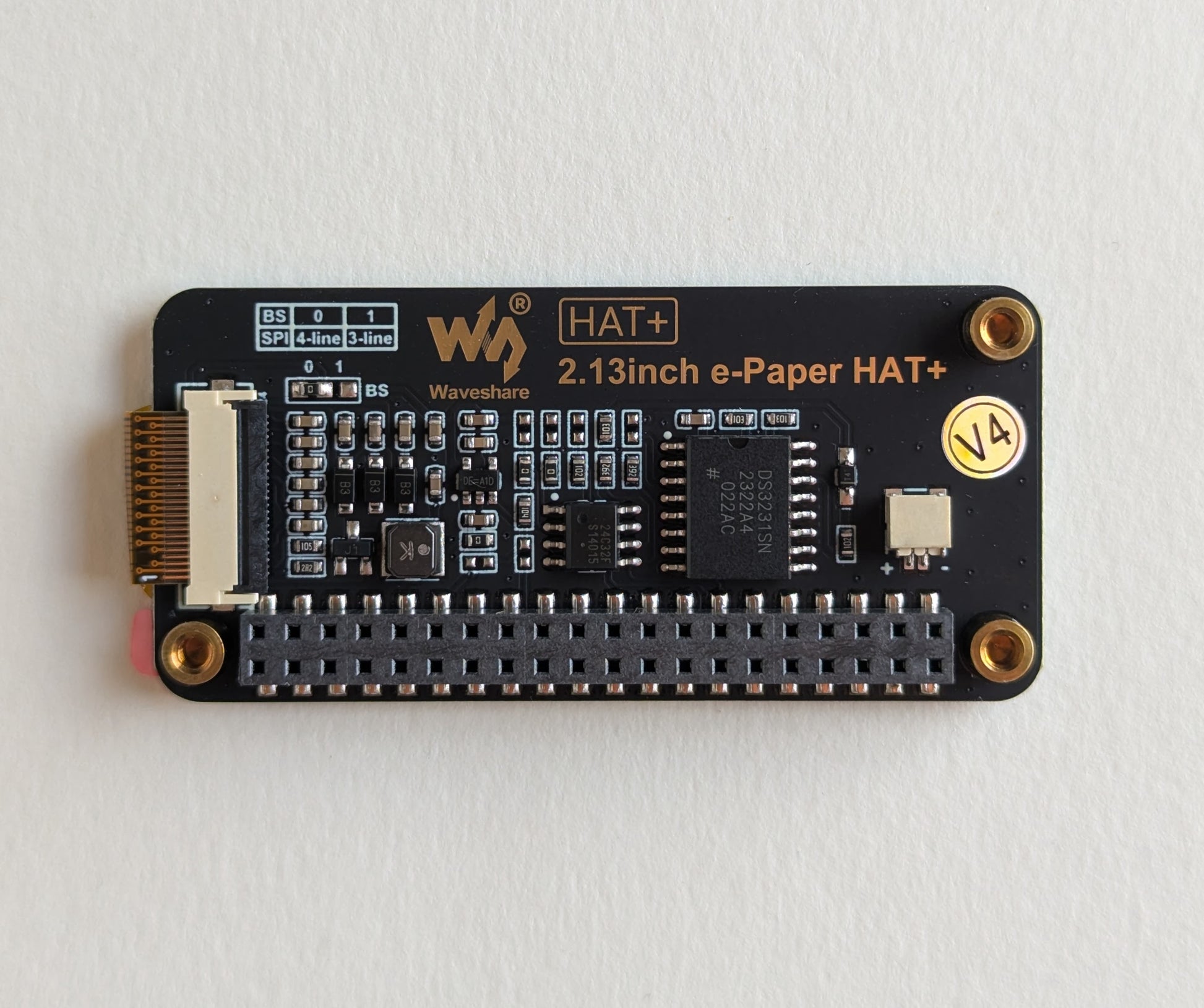

• 3-wire/4-wire SPI interface

• Onboard high-precision RTC
